ACTUAL SIZE
- Resolution: 1280x1024 pixels
- Pixel pitch: 9.6 micron
- Interface: LVDS
- SXGA096 Product Brief
- SXGA096-ULT Product Brief

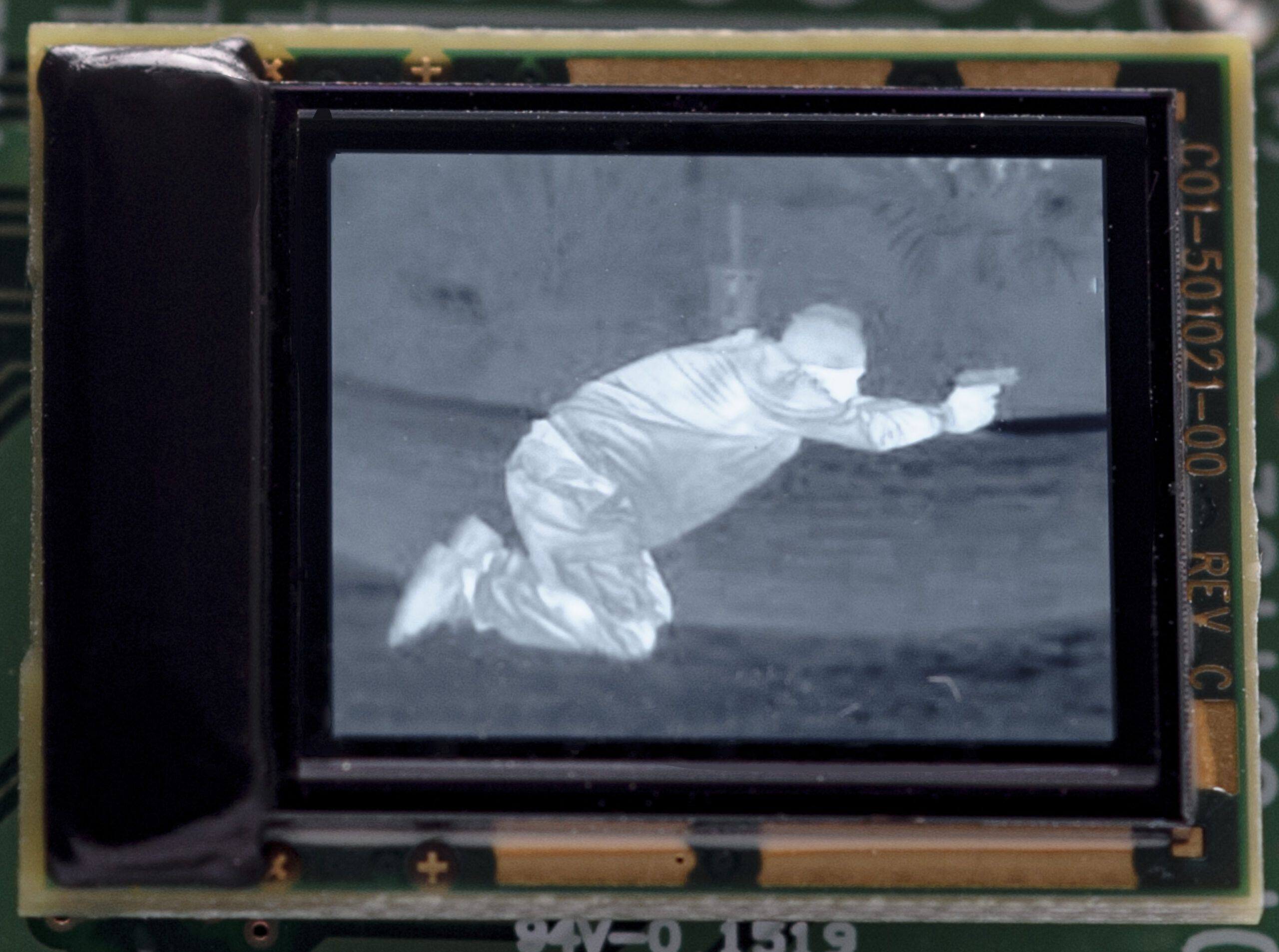

SXGA096

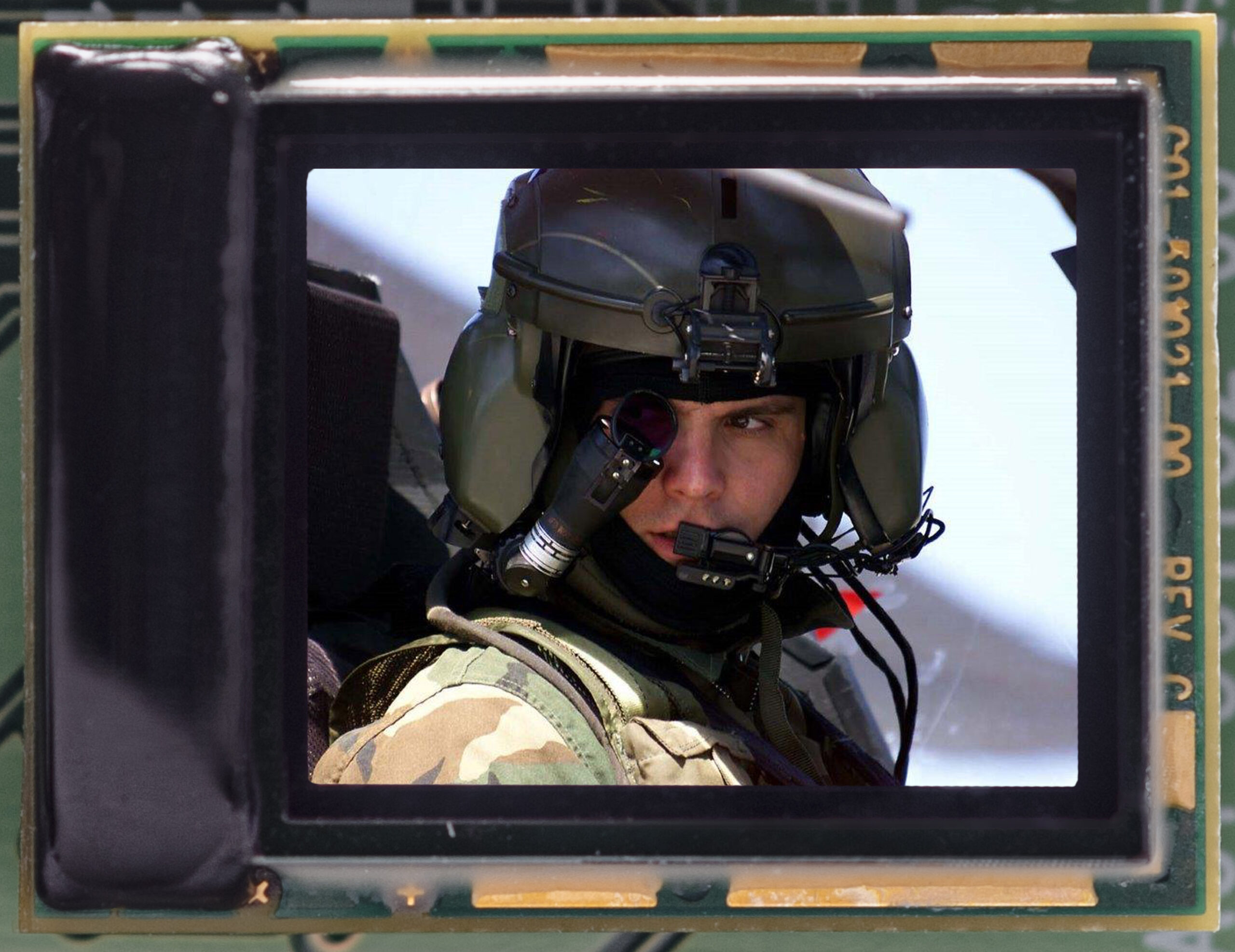

CF XL
CF XLS-

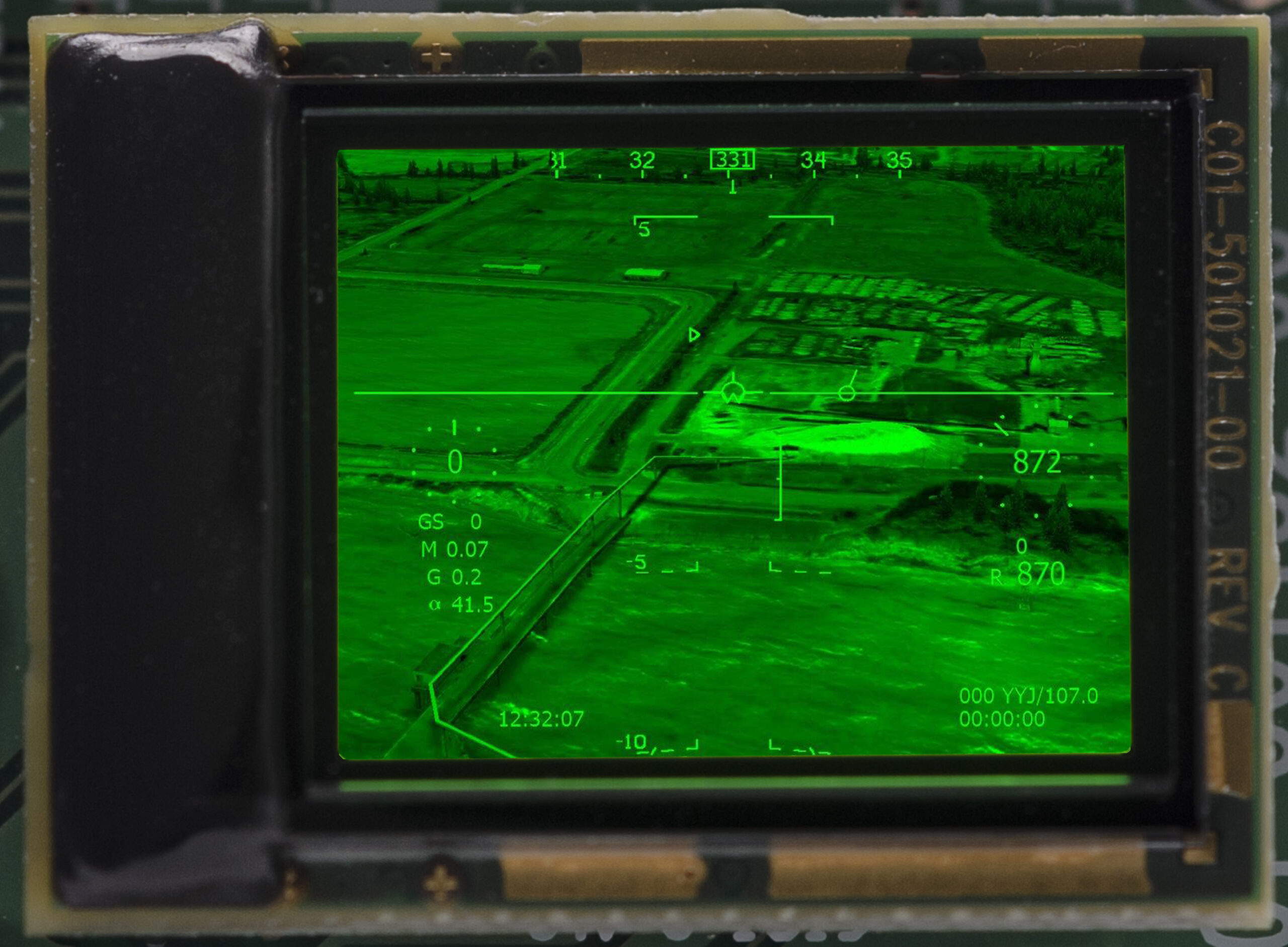

MG XLT
Important Notice
To better serve our customers with high-quality products and efficient service, we have set a minimum purchase quantity for this display. This ensures that we can continue to maintain our standards and support our valued customers.
Thank you for your understanding and continued support.
CF XLS FOC
ACCESSORIES

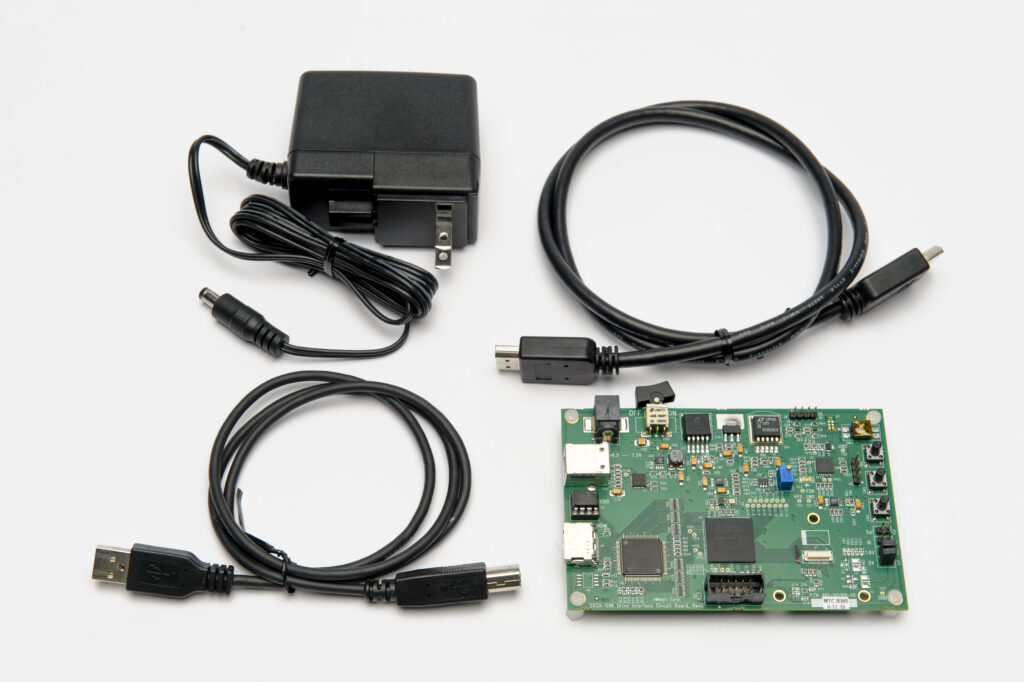

Design Reference Kit
Design Reference Kit

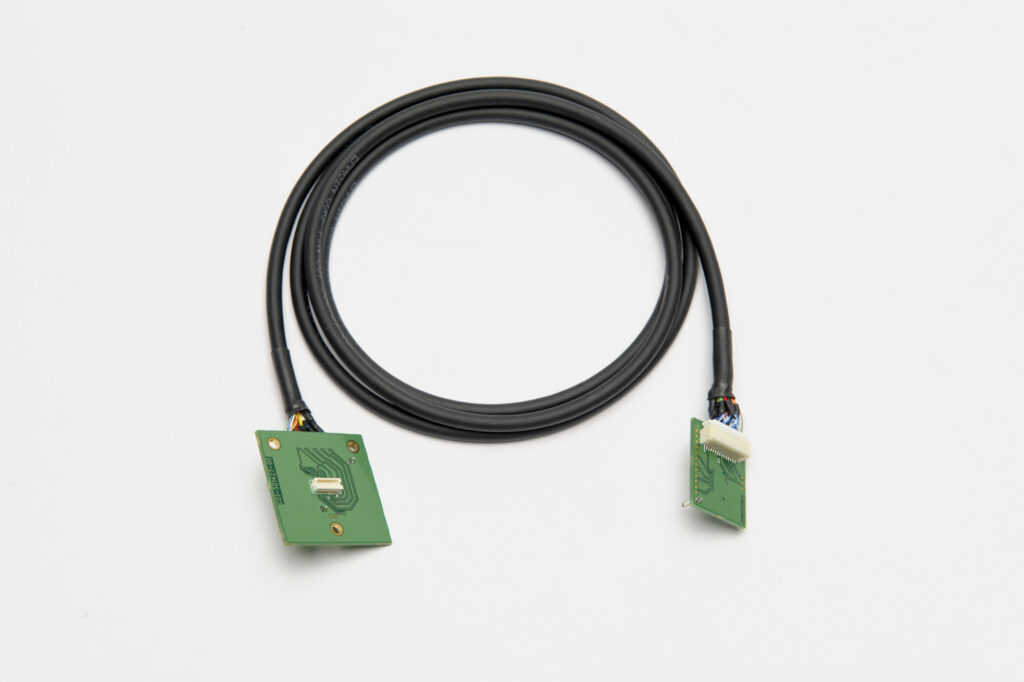

5' LVDS Cable Assembly
eMagin Development Boards currently have long to very long lead-times due to the current semi-conductor shortages. For rapid solution capabilities for concept development and prototyping customers may contact the suppliers listed below.
The SXGA-096 OLED-XL active array is comprised of 1292 x 1036 square pixels with a 9.6-micron pitch and a 75% fill factor. An extra 12 columns and 12 rows (beyond the 1280 x 1024 main array) are provided to enable the active SXGA-096 display to be shifted by steps of 1 pixel in the X and Y directions for optical alignment purposes.
Each full pixel is laid out as three 3.2 x 9.6 micron identical sub-pixels, which together form the 9.6-micron square RGB color group. Three primary color filter stripes are applied in alignment with the sub-pixels on a white-emissive OLED layer to form the color display.
The size of the SXGA-096 makes it an excellent upgrade candidate for systems using the SVGA+ and DSVGA where an upgrade in resolution is required and may allow use of existing optomechanical designs.
