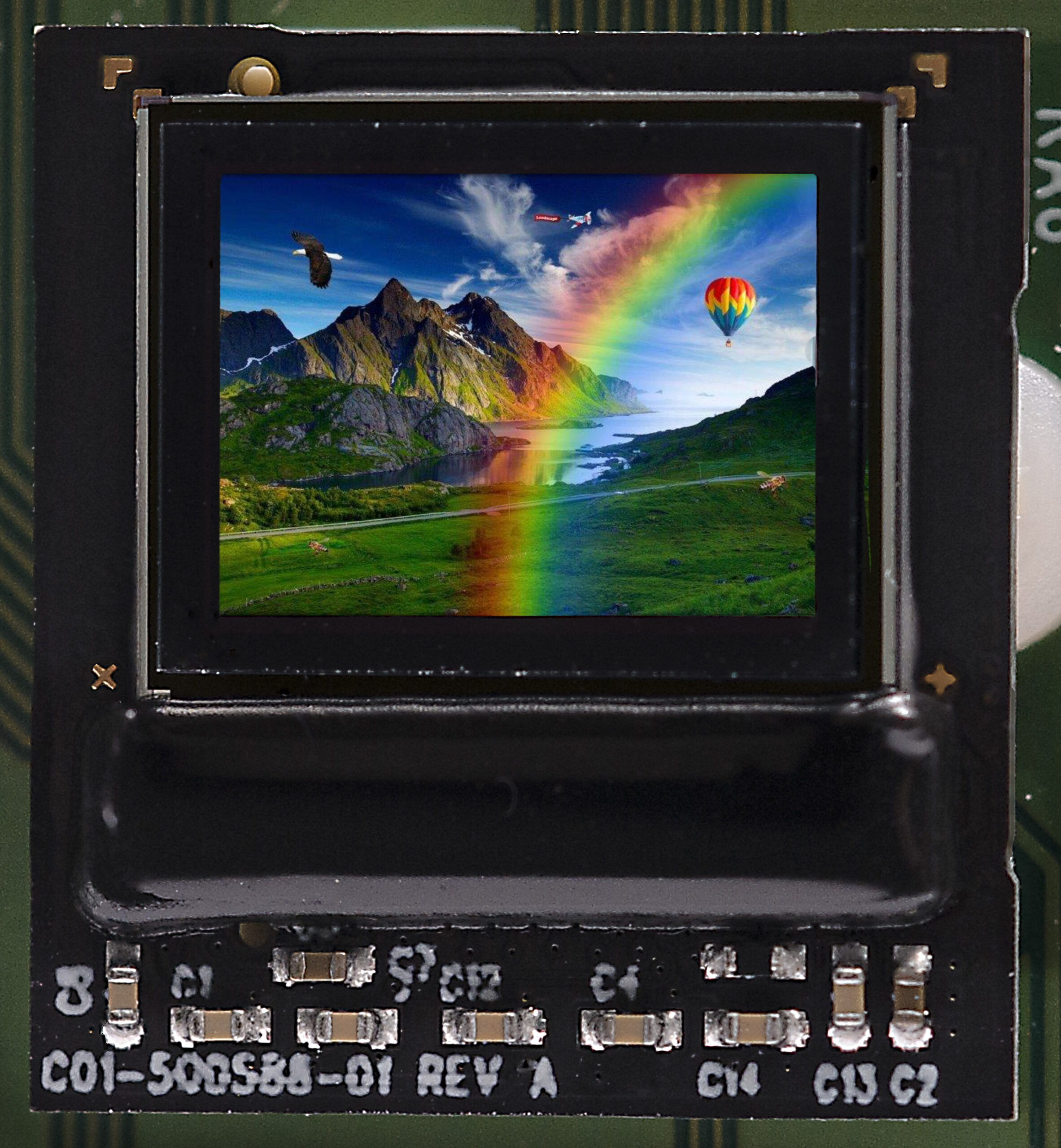

  •  DSC0591 VGA CF XL2k
    CF XL

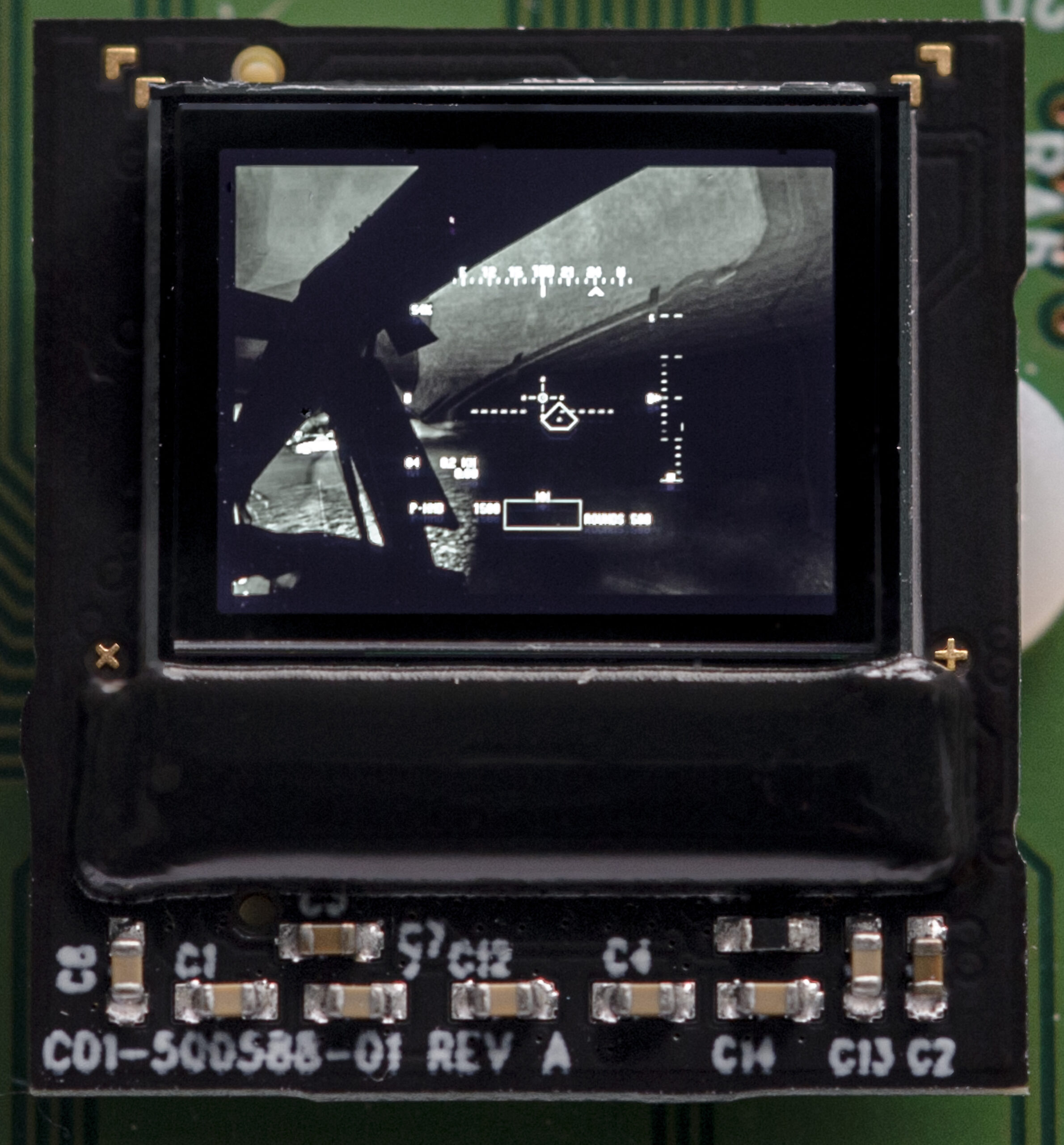

  •  DSC0644 SVGA150 Monochrome White2k
    MW XL
  •  DSC0646 SVGA150 Monochrome Green XLT2k
    MG XL

bannerhomeACCESSORIES

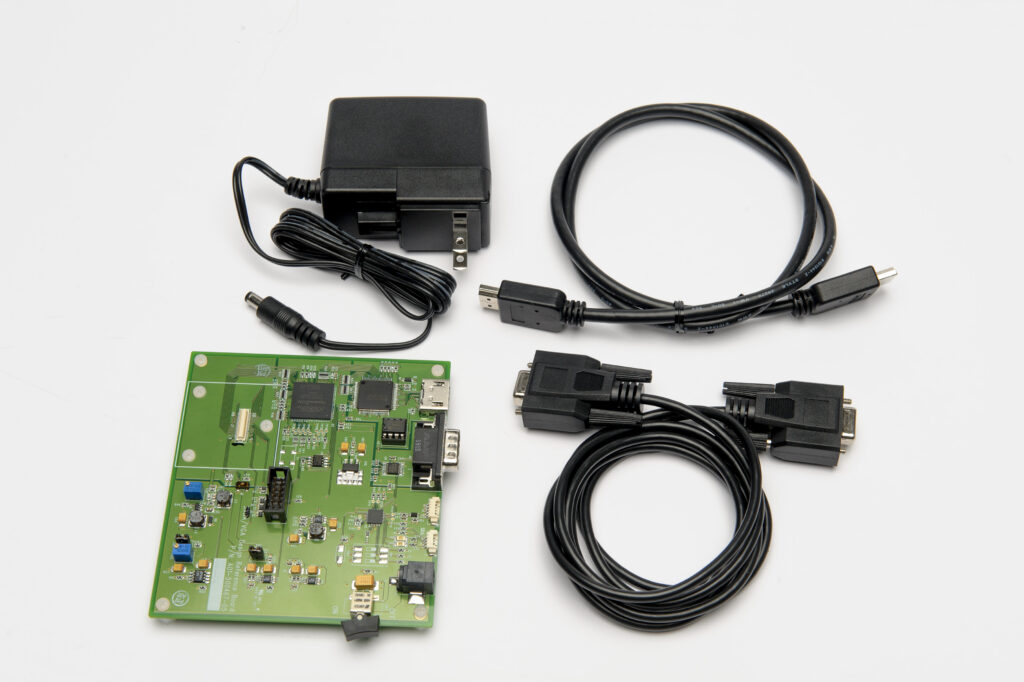

eMagin Development Boards currently have long to very long lead-times due to the current semi-conductor shortages. For rapid solution capabilities for concept development and prototyping customers may contact the suppliers listed below.




The VGA microdisplay active array is comprised of 680 x 520 square pixels with a 15-micron pitch and a 75% fill factor.  An extra 40 columns and 40 rows (beyond the 640 x 480 main array) are provided to enable the active VGA display to be shifted by steps of 1 pixel in the X and Y directions for temporal dithering or optical alignment purposes.

Each full pixel is laid out as three 5 x 15 micron identical sub-pixels, which together form the 15-micron square RGB color group. Three primary color filter stripes are applied in alignment with the sub-pixels on a white-emissive OLED layer to form the color display.

The VGA is well suited to use in Night Vision Systems using an FPGA and a VGA camera source. The monochrome version offers exceptional low power requirements.
