Product deati DSVGAl

  • Resolution: 800 x 600 pixels
  • Pixel pitch: 15 micron
  • Interface: 24 bit parallel & BT-656

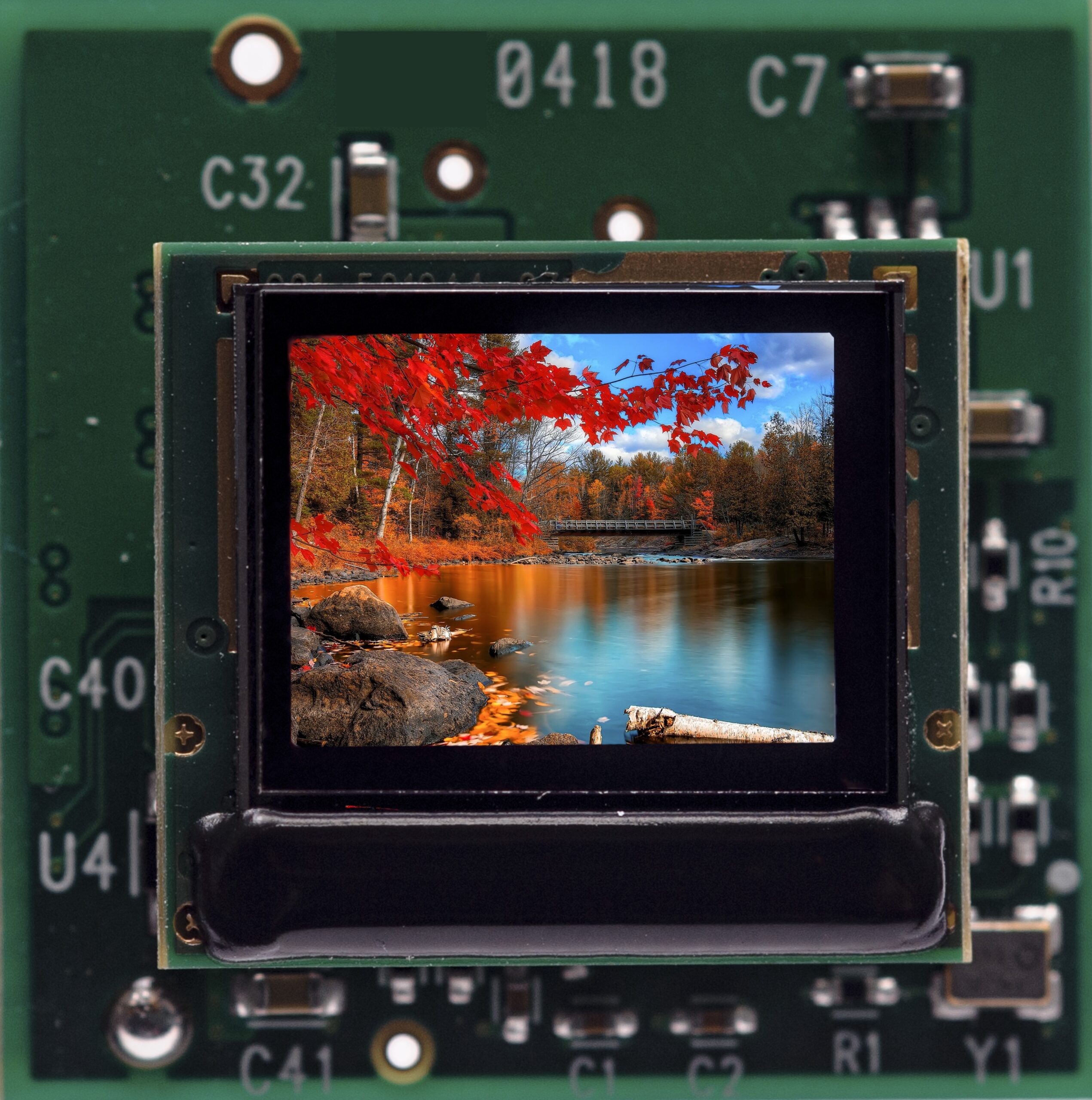

  • DSC0638_SVGA150_Color_XL2k
    Color XL

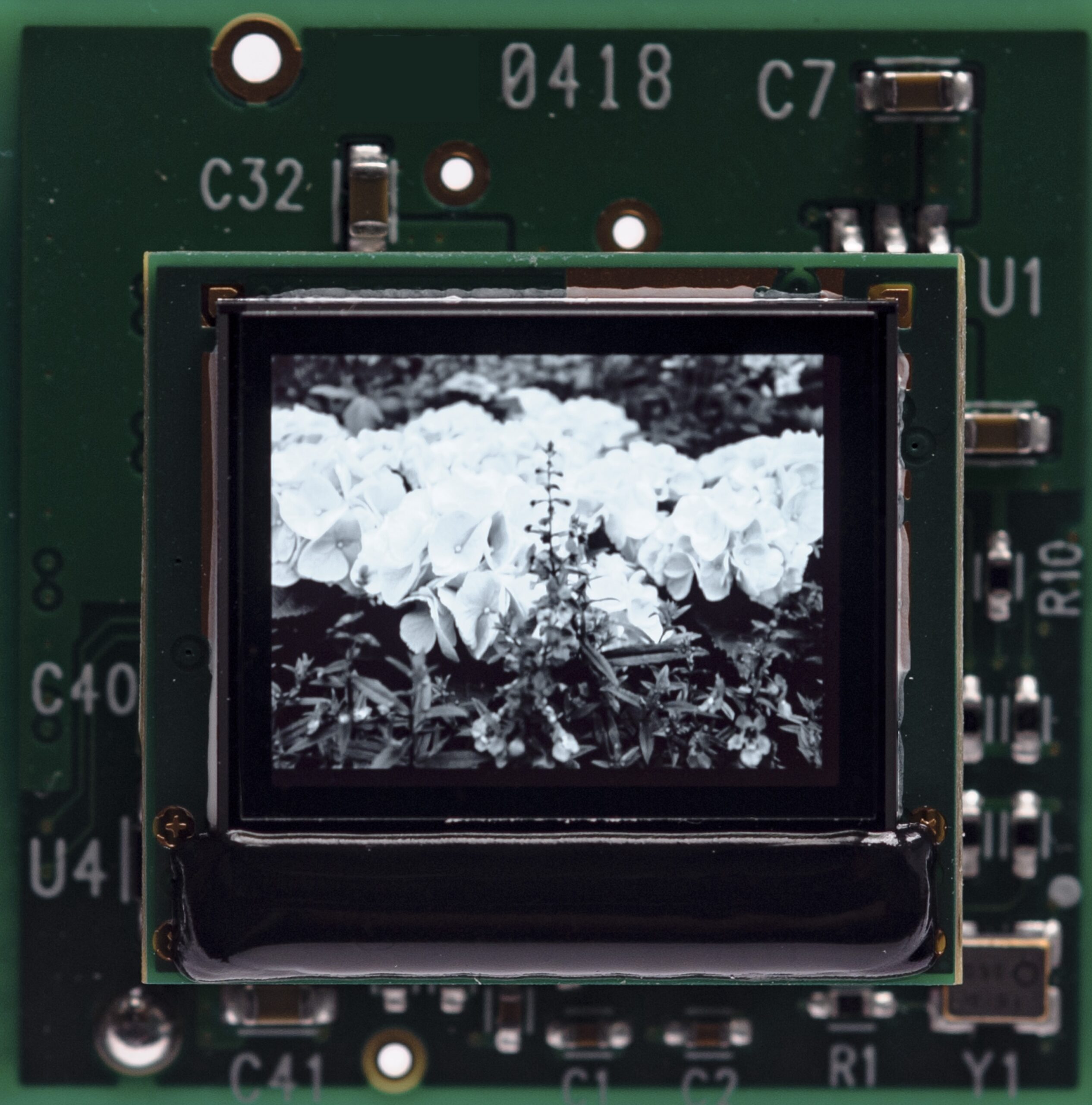

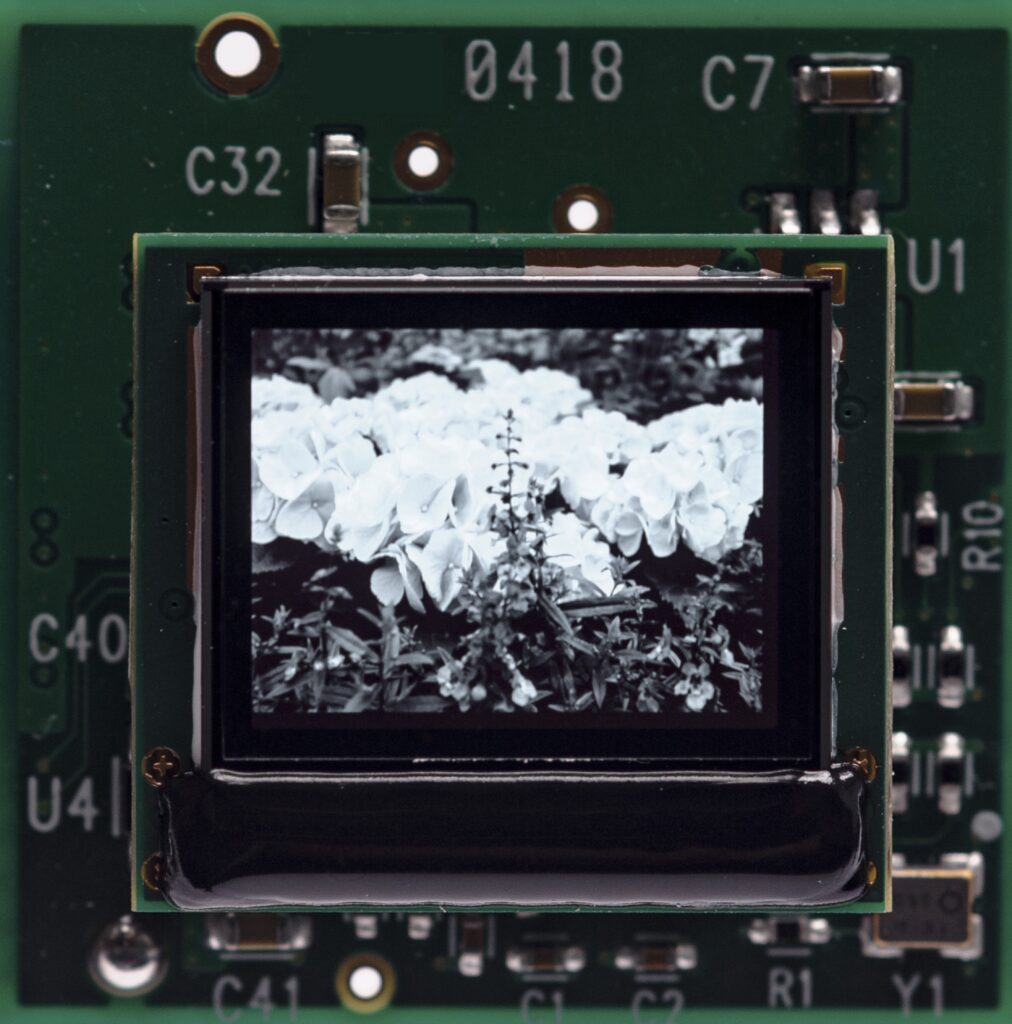

  •  DSC0644 SVGA150 Monochrome White2k
    Monochrome White

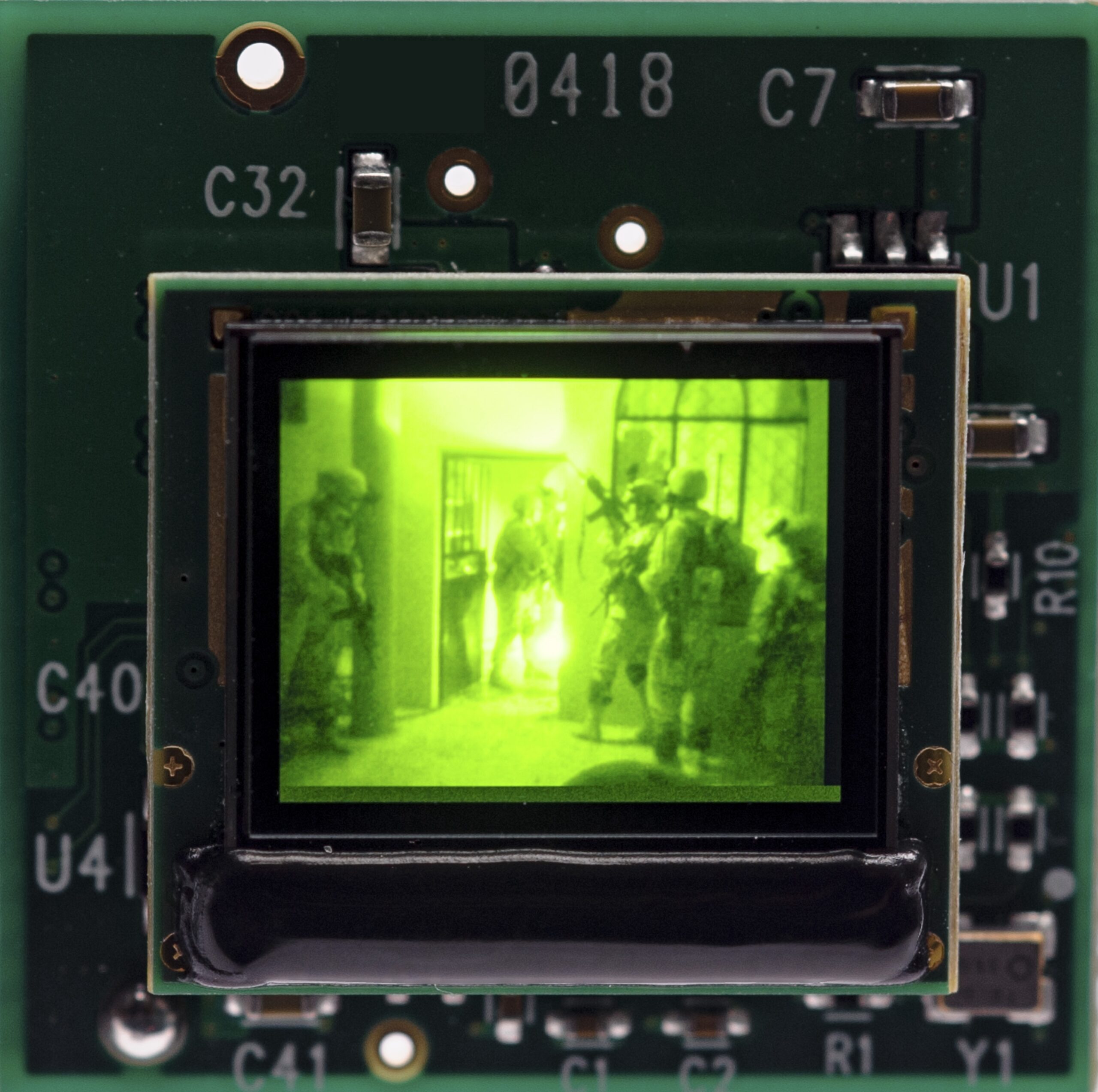

  •  DSC0646 SVGA150 Monochrome Green XLT2k
    Monochrome Green XLT

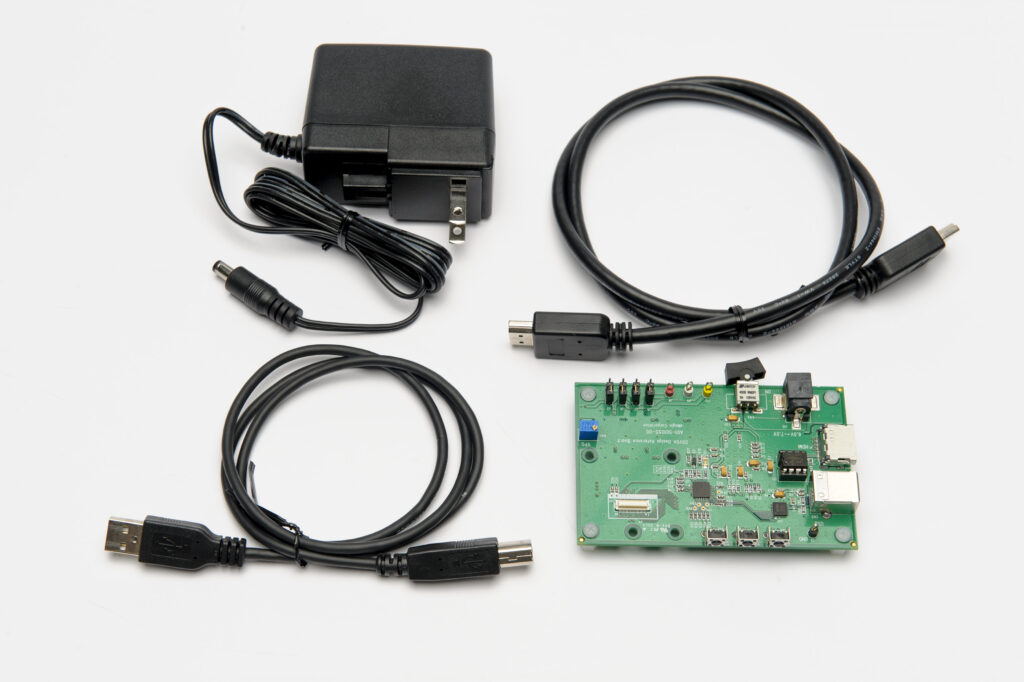

  •  DSC0651 SVGA150 Design Reference Kit2k
    Design Reference Kit
    Design Reference Kit
  •  DSC0674 WFO5 with Bracket for use with SVGA150 OLED2k
    WFO5 with Bracket

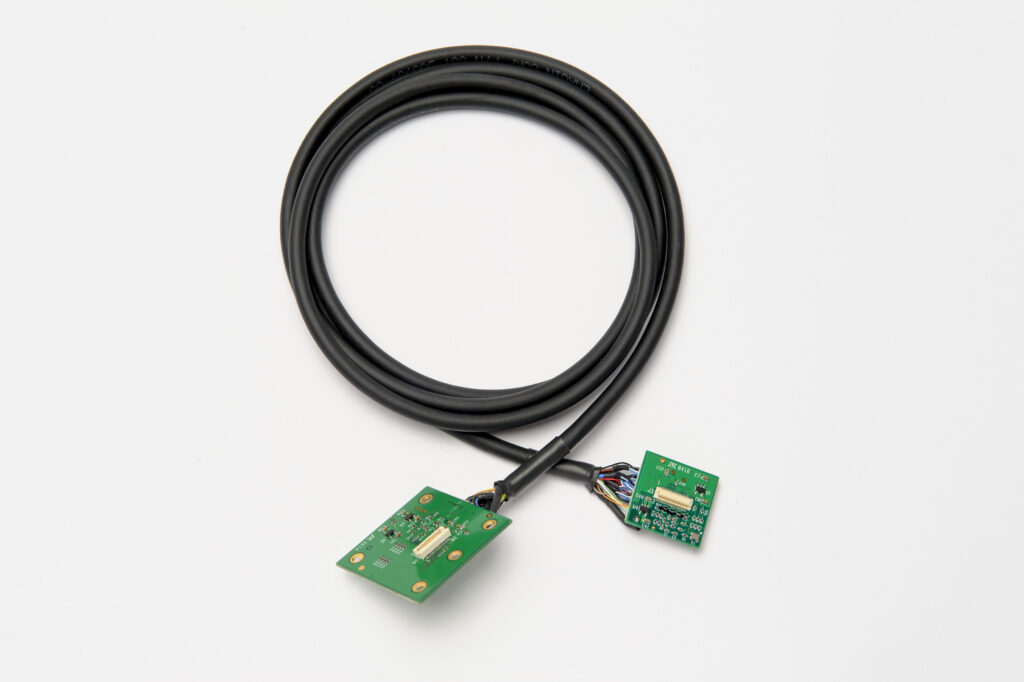

  • DSC0661 SVGA150 5 LVDS Cable Assembly
    5’ Cable Assembly
  •  DSC0674 WFO5 with Bracket for use with SVGA150 OLED2k
    BIT1011A DSVGA HDMI Compact Drive Board
  •  DSC0674 WFO5 with Bracket for use with SVGA150 OLED2k
    BIT1011B DSVGA BT656 & Analog Compact Drive Board

eMagin Development Boards and Bild Compact Boards currently have long to very long lead-times due to the current semi-conductor shortages.

The DSVGA microdisplay active array is comprised of 824 x 624 square pixels with a 15-micron pitch and a 75% fill factor. An extra 24 columns and 24 rows (beyond the 800 x 600 main array) are provided to enable the active DSVGA display to be shifted by steps of 1 pixel in the X and Y directions for temporal dithering or optical alignment purposes.

Each full pixel is laid out as three 5 x 15 micron identical sub-pixels, which together form the 15-micron square RGB color group. Three primary color filter stripes are applied in alignment with the sub-pixels on a white-emissive OLED layer to form the color display.

The DSVGA is well suited as for use in Night Vision Systems especially those using BT656 camera. It also provides an upgrade for existing SVGA+ systems capable of using the same optomechanical designs while providing better image quality and lower power.
